Product Details

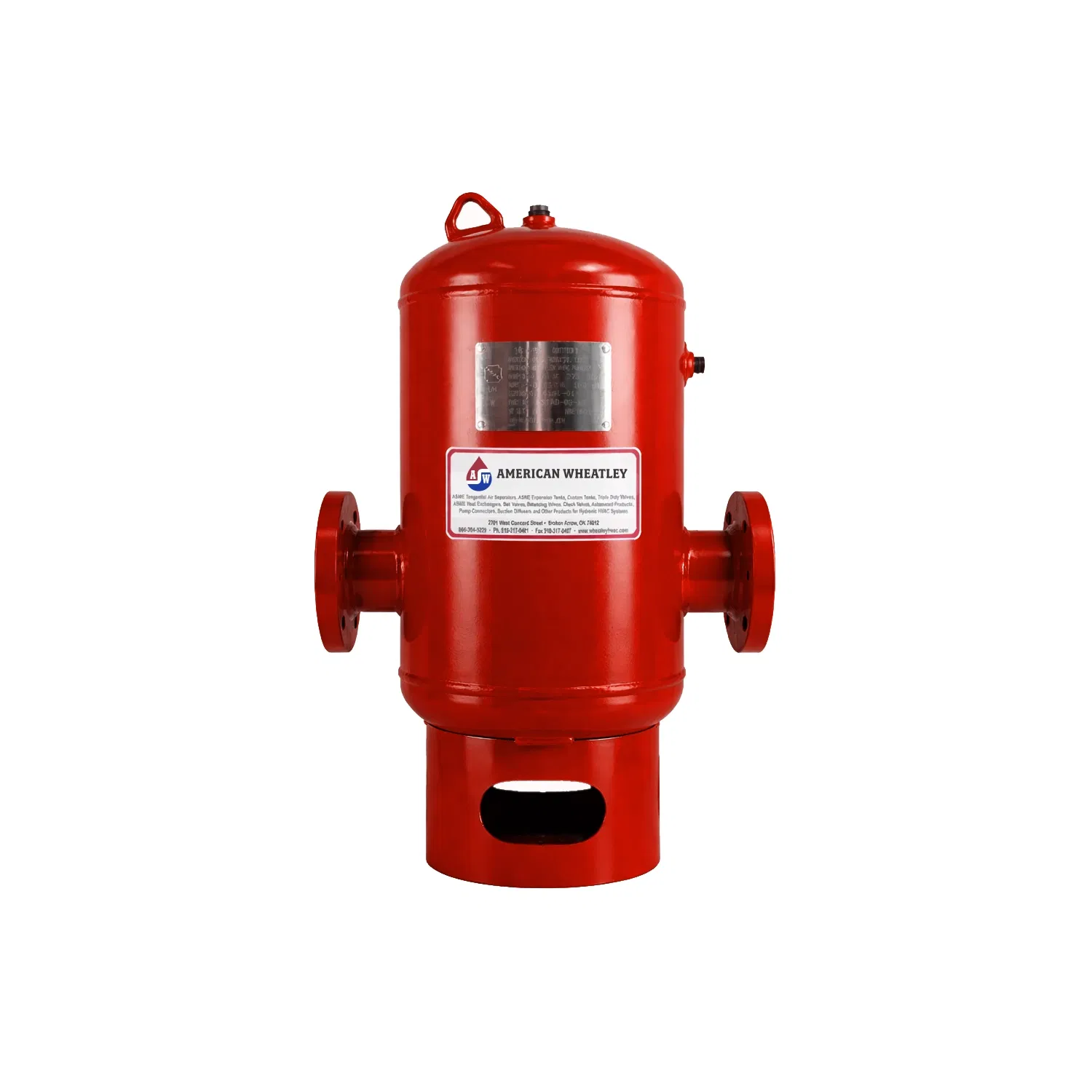

The American Wheatley HVAD High Velocity and STAD Standard Velocity Coalescing Air & Dirt Separator is intended for use on commercial HVAC, institutional, and industrial applications to remove entrained air and particulate from system water. We accomplish this with the use of a high-performance saddle ring coalescing assembly internal to the separator. The American Wheatley HVAD & STAD series coalescing type air & dirt separator is capable of removing 99.6% free air and 99% of the measurable entrained and dissolved air with continuous circulation. Solids to 20 microns can be eliminated within 100 passes of continuous circulation.
- HVAD – High Velocity up to 33457 GPM
- STAD – Standard Velocity up to 14905 GPM
- Available with or without removable cover
- Stainless steel coalescing media
- Skim and drain valve connections standard
- Available 2″ through 10”, with larger sizes POA
- Particulate removal to 35 micron
- Rated 150PSI WP 2″-12″, 125PSI WP14″-16″ with higher pressures available
- Constructed in accordance with Section VIII, Division I of the ASME Boiler and Pressure Vessel Code
