Features: #
- Constructed in accordance with ASME Section VIII, Division I, Latest Edition
- Heavy Duty Butyl Bladder – NSF 61 Approved – Field Replaceable
- Fully Adjustable Field Air Charging
- Factory Air Charged to 12 P.S.I.
- Primed Exterior
Optional Features: #
- Trimmed for Potable Water
- “Bulls Eye” sight glass
- Seismic mounting (clips or legs)
- EPDM Bladder Material
- Higher pressures available upon request
- Painted Exterior, Epoxy Coatings
Tank dimensions will not change
All packaging materials, thread protectors, plastic plugs and caps must be removed before installation.
Dimensions are subject to change without notice, please confirm actual dimensions with factory at time of order.
Standard design pressure 125 PSI
Maximum design temperature 240°F with Butyl Bladder

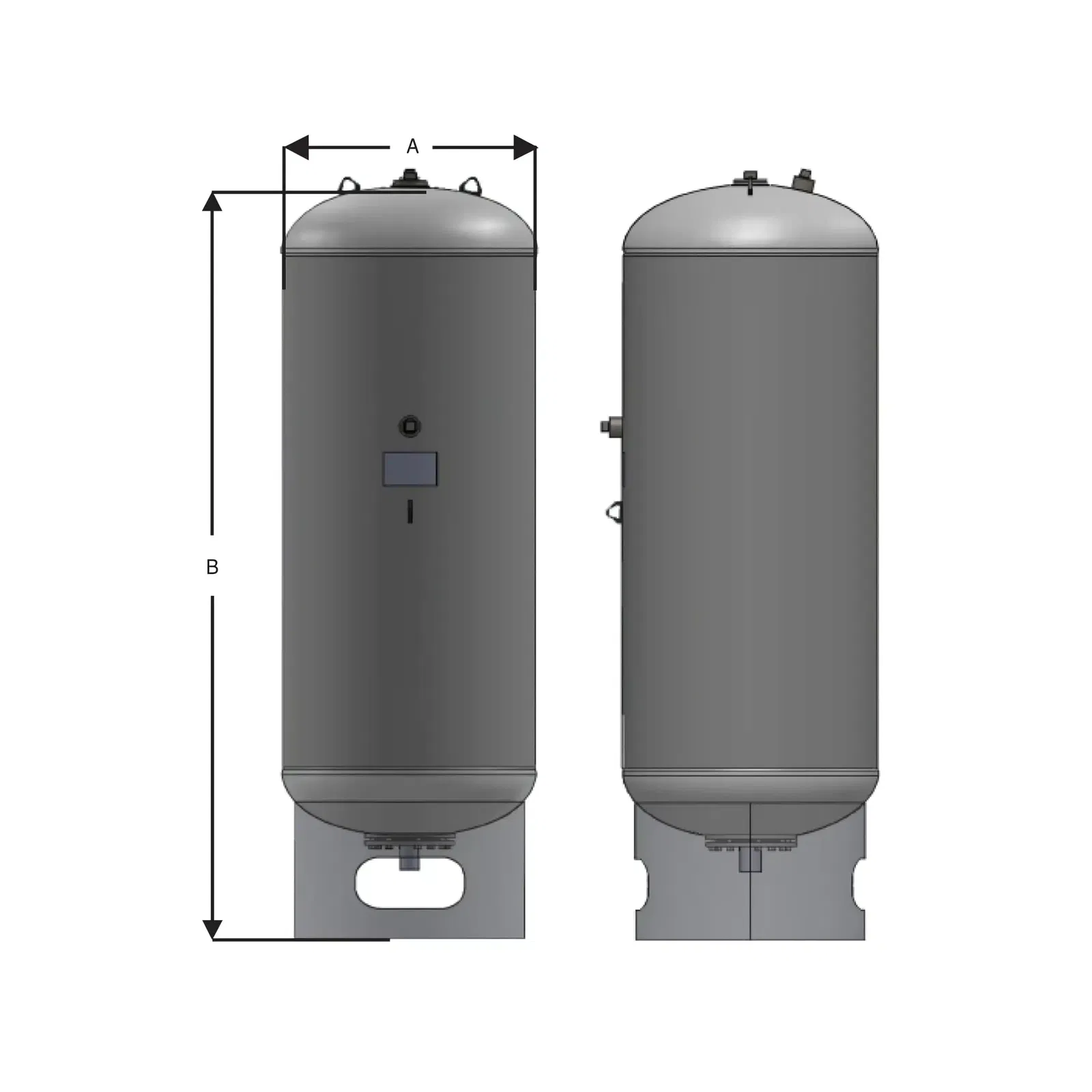

| PART NUMBER | ACCEPTANCE DIAMETER VOLUME | A (IN.) | HEIGHT B (IN.) | SYSTEM CONNECT (IN.) | WEIGHT (LBS) | WORKING PRESSURE |
|---|---|---|---|---|---|---|
| WBF140 | 36 | 20" | 42" | 2" | 220 | 125 PSI |
| WBF215 | 57 | 20" | 58" | 2" | 315 | 125 PSI |
| WBF300 | 82 | 24" | 61" | 2" | 350 | 125 PSI |
| WBF450 | 120 | 24" | 81" | 2" | 425 | 125 PSI |
| WBF600 | 165 | 30" | 73" | 2" | 485 | 125 PSI |
| WBF800 | 220 | 30" | 91" | 2" | 615 | 125 PSI |
| WBF1000 | 271 | 36" | 81 5/8" | 3" | 815 | 125 PSI |
| WBF1200 | 324 | 36" | 81 5/8" | 3" | 965 | 125 PSI |
| WBF1400 | 377 | 36" | 105 5/8" | 3" | 1045 | 125 PSI |
| WBF1600 | 440 | 48" | 80" | 3" | 1405 | 125 PSI |
| WBF2000 | 550 | 48" | 94" | 3" | 1675 | 125 PSI |
